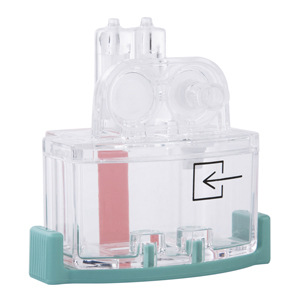

Water Trap

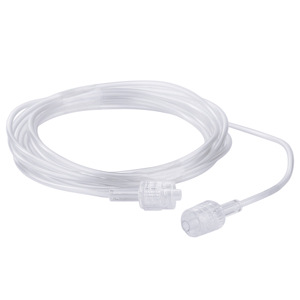

Sample Line
*7'' color LCD display with 800*480 resolution
*Easy to learn and use, simplified menus and dedicated functions keys
*Rechargeable high capacity built-in Li Battery, continuously working for over 8 hours
*Designed for low tidal volumes with high breath rates for a wide range of clinical applications
*Real-time and continuous measurement of inspired and expired gas concentrations
*Anesthesia Gas ID identify automatically
|
Model |
MG2000 |
||
|
Calibration |
No routine user calibration required |
||
|
Compensation |
Automatic for atmospheric pressure, temperature |
||
|
Respiratory Rate |
Range 3 to 150 Breaths Per Minute (BPM) Accurancy ±1 breath |
||
|
Measurement Accurancy |
Gas Type |
Range |
Accuracy |
|
CO2 |
0 - 10% 10 -15% |
±(0.2 vol% +2% of reading) ± (0.3 vol% +2% of reading) |
|
|
ISO |
0 - 6% |
± (0.2vol% +2% of reading) |
|
|
ENF,HAL |
0 - 6% |
± (0.2vol% +2% of reading) |
|
|
DES |
0 - 18% |
± (0.2vol% +2% of reading) |
|
|
SEV |
0 - 8% |
± (0.2vol% +2% of reading) |
|
|
Size |
Dimession 24*23*22cm Packing 35*33*32cm |
||
